Wizard97: Watermark and Header Graphics are repeated

8 Jan 2004 17:14 mfc

I was adding a new wizard to the program that I’m currently working on, so I copied some code from a Wizard97 demo program that I wrote some time ago.

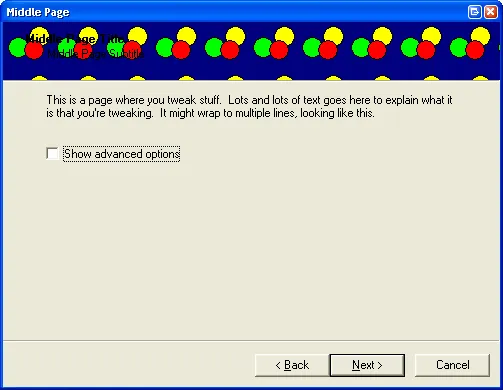

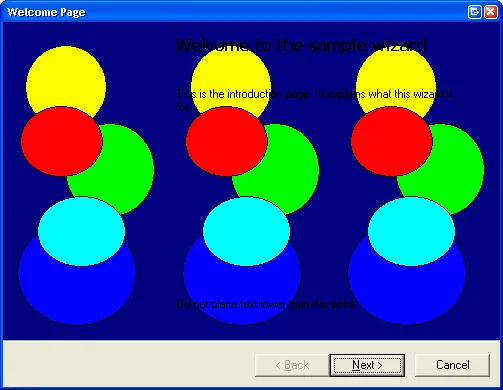

When it comes up, the header and watermark graphics are displayed repeated.

This is shown in the following pictures:

The problem? PSH_WIZARD97 is defined differently, according to which version of IE you claim to be targetting:

#if (_WIN32_IE >= 0x0400)
//----- New flags for wizard97 -----------
#if (_WIN32_IE < 0x0500)
#define PSH_WIZARD97            0x00002000
#else
#define PSH_WIZARD97            0x01000000
#endif

Apparently, Microsoft changed the value of the PSH_WIZARD97 flag between IE4 and IE5. Depending on whether you’re running against IE4 or IE5, you should pass a different value.

The simple fix, assuming that you’re only supporting IE5 or newer is to add the following to your StdAfx.h file:

#ifndef _WIN32_IE
#define _WIN32_IE 0x0500	// Allow use of features specific to IE 5.0 or later.
#endif

That’s better.

Note that if you claim to only support IE5 or later, you should put runtime checks for this in your code as necessary.
