Installing MetalLB

20 Dec 2021 20:55 kubernetes raspberry-pi metallb

Installation with Helm, per https://metallb.universe.tf/installation/#installation-with-helm.

Add the repo

helm repo add metallb https://metallb.github.io/metallb

Create the values file

My home network is 192.168.28.x, my DHCP server allocates .100 and up, so we’ll use a pool of addresses outside that range.

# values.yaml
configInline:
  address-pools:
   - name: default
     protocol: layer2
     addresses:
     - 192.168.28.10-192.168.28.40

Note that you don’t need a ConfigMap (i.e. no values.yaml) since 0.13.x; you can use CRDs to define the configuration.

Run the installation

helm --namespace metallb-system \
    install --create-namespace \
    metallb metallb/metallb -f values.yaml

To upgrade later:

helm --namespace metallb-system upgrade metallb metallb/metallb

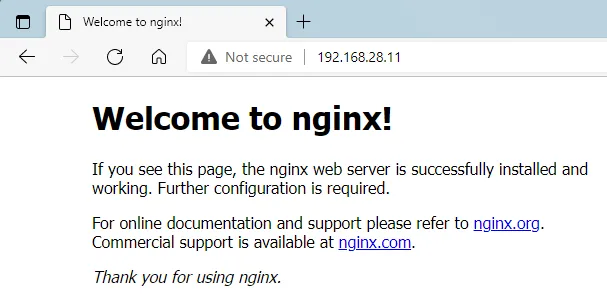

Does it work?

$ kubectl create deployment nginx --image=nginx

$ kubectl expose deployment nginx --type=LoadBalancer --port 80

$ kubectl get services
NAME         TYPE           CLUSTER-IP      EXTERNAL-IP     PORT(S)        AGE
kubernetes   ClusterIP      10.43.0.1       <none>          443/TCP        5h53m
nginx        LoadBalancer   10.43.156.110   192.168.28.11   80:32580/TCP   117s

$ kubectl scale deployment --replicas=3 nginx

I forgot to disable Klipper, the K3s-provided load balancer. It doesn’t seem to do any harm, but I’ll deal with that later.
